Galvanized drop forged scaffold joint f beam clamp Scaffolding Coupler is the main part of the tubular scaffolding system, it supplys a fasten and conect functions in system. Simple struction and big loading power, make couplers easier and widely used by scaffolders on construction project. We...

Chat Now

Product Details

Galvanized drop forged scaffold joint fbeam clamp

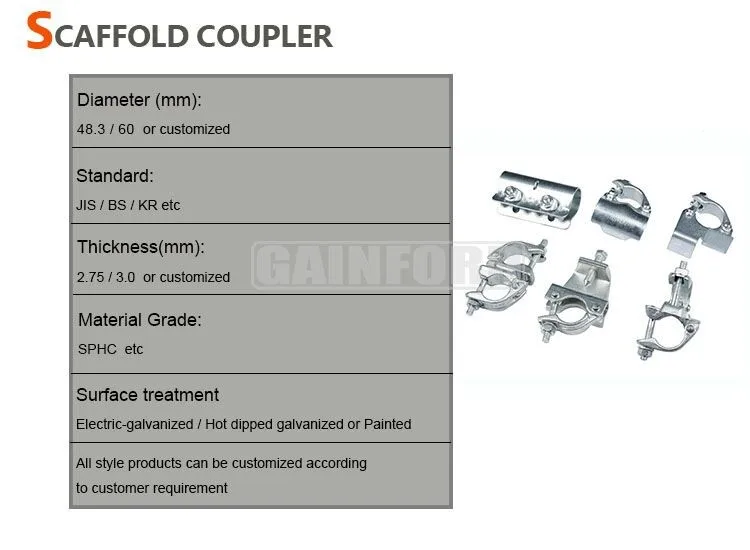

Scaffolding Coupler is the main part of the tubular scaffolding system, it supplys a fasten and conect functions in system. Simple struction and big loading power, make couplers easier and widely used by scaffolders on construction project.

We have different types and sizes scaffolding couplers, such as fixed coupler, swivel coupler, ladder beam coupler, Sleeve coupler...



Benefits of Tubular Scaffolding:
1. Easy To Use. These scaffolds are easy to use, only four basic components are required such as tube, right angle coupler, swivel coupler, bases or casters.
2. Durability. These types of scaffolds are durable, galvanized tubes and couplers are able to take on harsh environments.
3. Ease in Assembly and Dismantling. Tubular scaffolds can be assembled easily and dismantled, saving time on site.
4. Light in Weight. The tubular system can be easily moved around the construction site.
5. Adaptability. In comparison to other scaffolds, tube and fittings system offer the most adaptable and efficient scaffold solutions.
6. Cost Effectiveness. In cases when scaffolds need to be erected for long periods of time (more than four weeks), tube and fitting system scaffolds provide the most cost effective scaffold solutions.
7. Flexibility. Tubular scaffolds are one of the most flexible types of scaffolds. These scaffolds can be adjusted according to the desired height.
8. Longer Life Span. Tubular system scaffolds have a longer life span in comparison to other scaffolds and offer more sturdy work platforms.

British Type Couplers
Description
Specification
Weight
Standard
Drop Forged Fixed Coupler
48.3/60.3mm
0.98kg
BS1139/EN74
Drop Forged Swivel Coupler
48.3/60.3mm
1.12kg
BS1139/EN74
Drop Forged Girder Coupler
48.3mm
1.48kg
BS1139/EN74
Drop Forged Putlog Coupler
48.3mm
0.63kg
BS1139/EN74
Drop Forged Joint Pin
48.3mm
1.12kg
BS1139/EN74
Pressed Sleeve Coupler
48.3mm
0.97kg
BS1139/EN74
Pressed Board Retaining Coupler
48.3mm
0.61kg
BS1139/EN74
Pressed Limpet Coupler
48.3mm
0.32kg
BS1139/EN74
Detailed Images

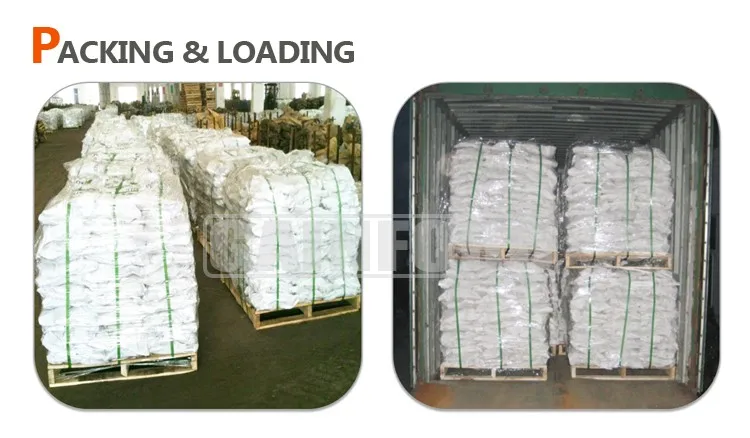

Packing & Delivery

Packing details

The most popular packing is 25pcs/bundle, 30pcs/bundle, 40pcs/bundle.

We could offer the packing according to the customer requirement.

Certification

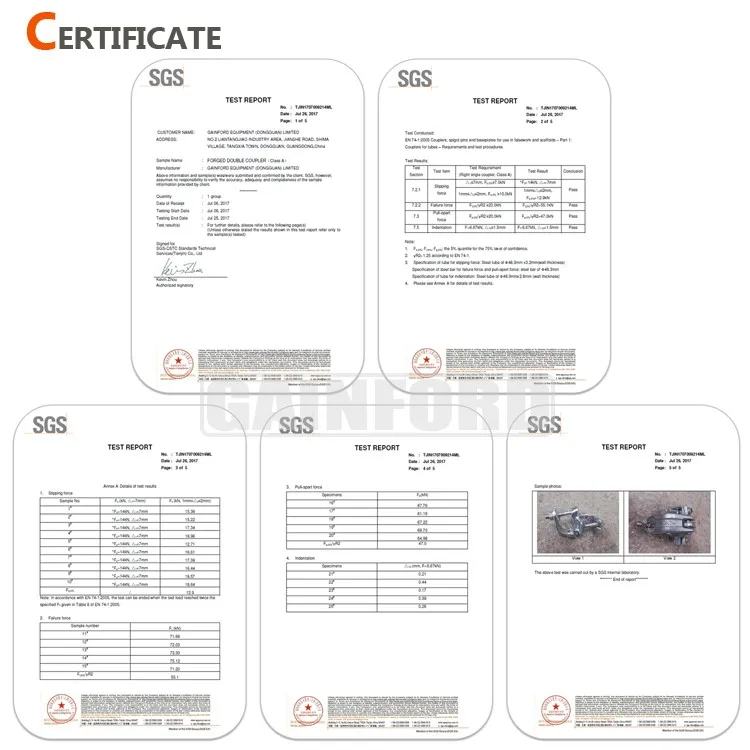

 We have ISO:9001,14001,18001certifications and SGS/TUV test report for scaffolding products .
